KW SUSPENSIONS coilover kit V4 Clubsport with support bearing Mitsubishi Lancer MK7 Cs_A / Ct_A

KW suspension  |  SKU: 39765206

€5.449,99
VAT included Shipping will be charged at checkout.

Description

✅ Individual lowering
✅ Composite spring plate
✅ Separate and independent damping force adjustment
TRACK PERFORMANCE FOR YOUR CLUB SPORTS VEHICLE
The KW V4 Clubsports coilover suspension is a high-performance suspension that was developed for use on the racetrack. It is vehicle specific and can be customized to meet the needs of each vehicle. The basic setup was developed in numerous test and measurement runs on the Nordschleife and the KW 7-Post driving dynamics test bench and can be adjusted to the individual wheel loads, the vehicle weight and the changed body rigidity with the click setting.

The KW V4 Clubsports coilover kit allows the compression stage to be fine-tuned separately in the low-speed and high-speed range, similar to the KW Competition racing kits used in international motorsport. The click adjustment of the TVCLH-A technology (Twin Valve Compression Low Highspeed Adjustable) takes place directly on the reservoir. You can manually adjust the low-speed compression with six precise clicks on the purple adjustment wheel. You can change the high-speed compression level of the recommended basic setup for a track day with 14 precise clicks using the gold-colored adjustment wheel underneath. Irrespective of this, you still have 16 clicks available to noticeably adjust the rebound stage.

Thanks to the parts certificate for the KW V4 Clubsport coilover kit, it is easy to drive onto the race track with your own wheels and adjust the damper setup on site with just a few clicks. With this high-performance chassis, you can drive your vehicle safely on the race track and at the same time enjoy optimal driving dynamics.
MEASUREMENTS

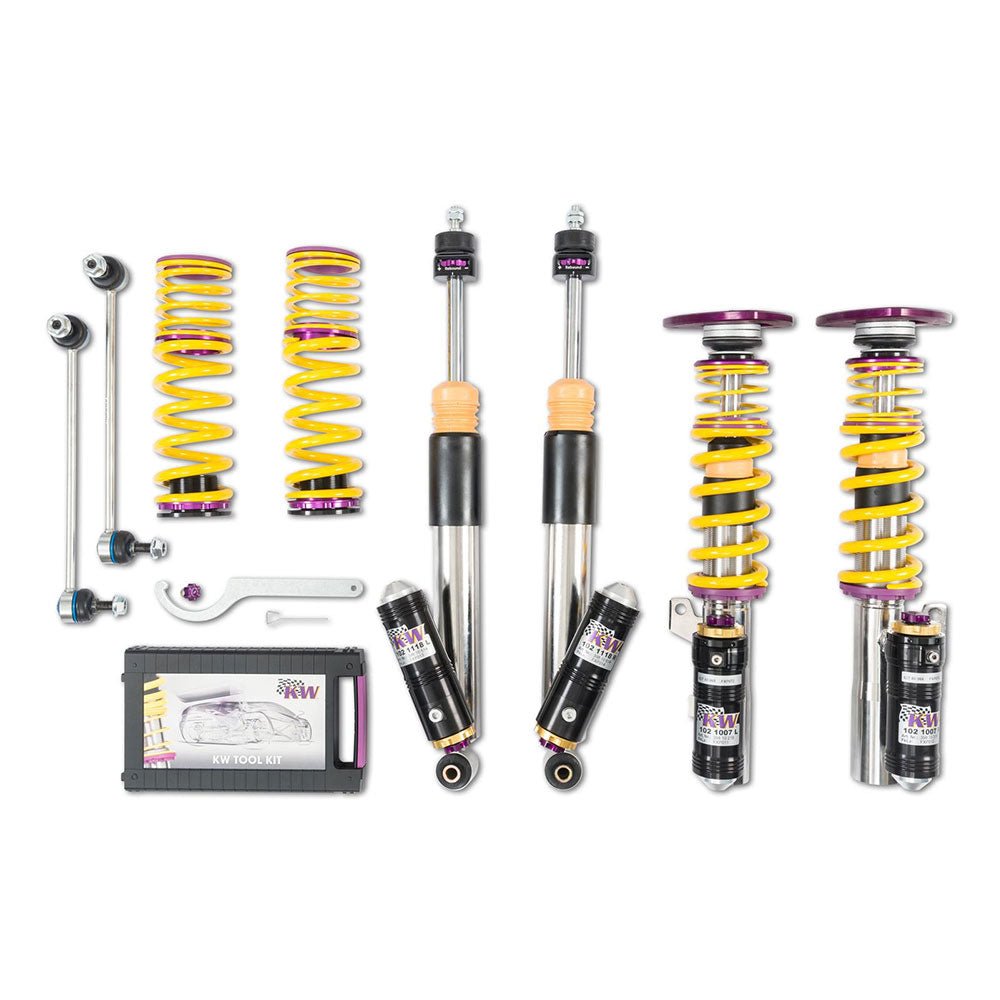

Delivery: Set VA + RA coilover struts incl. VA + RA support bearings
TECHNICAL SPECIFICATIONS
Manufacturers KW suspension
Suitable for Mitsubishi LANCER VII (CS_A, CT_A) 03/2000-12/2013
Year 03 / 2004-
Authorization without (individual acceptance §21 required)
-Setup Sports / club sports / race track
Lowering steps Maximum lowering
Lowering value front axle -
Lowering value rear axle -
Front axle adjustment Thread
Rear axle adjustment Thread
hardness adjustment Rebound and compression
Axle load front axle -1015
Axle load rear axle -900
Material Stainless Steel
